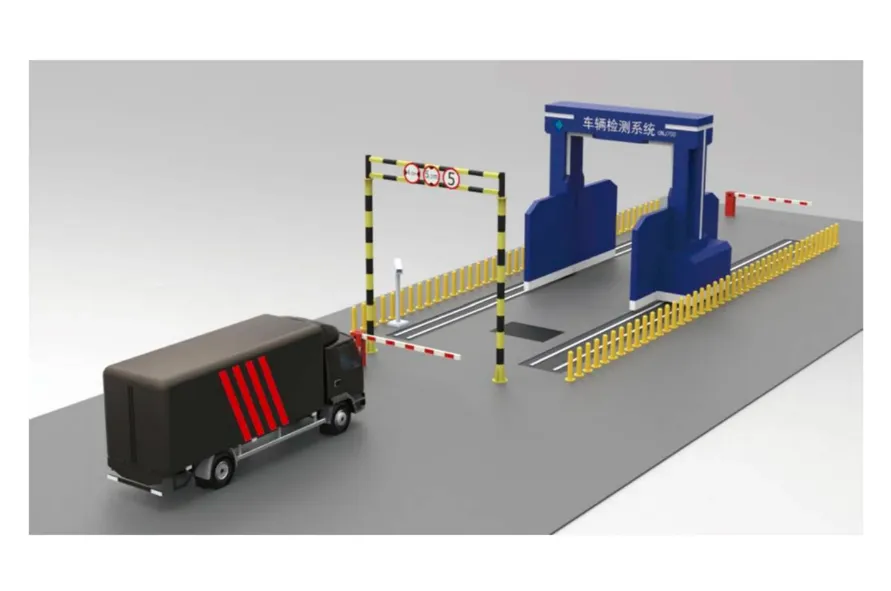

Prison Vehicle Inspection System UNJ700

Product Features :
• With active and passive scanning working mode
• Modular shield structure, easy to be assemble and move
• The system is stable and reliable, operate 24/7 operation
• The system has high integration, provides data interface, and can be integrated into the existing customer’s business management system
• Advanced material identification algorithm software
• Customized design according to user needs

Technical Specifications :
Technical Features
• X-ray source : KV
• Inspection pass rate : 30 Vehicle/h
• Penetration(Fe) : ≥30mm
• Inspection speed : 0.2~0.4m/s
• Maximum size : 3.5m(W)×4.2m(H)×26m(L)
• Floor area : about 270m²(W30m×D9m)

Radiation Safety
• Public annual effective dose : ≤0.2mSv (one year)
• Staff annual effective dose : ≤2mSv (one year)
• Maximum dose rate : ≤2.5μSv/h
• Satisfied standard : National standard: GB18871-2002, GBZ143-2015, GB/T19211-2015

Environmental requirements
• Operating temperature : -20℃~45℃
• Storage temperature : -35℃~55℃
• Ambient temperature : ≤90%, no condensation
