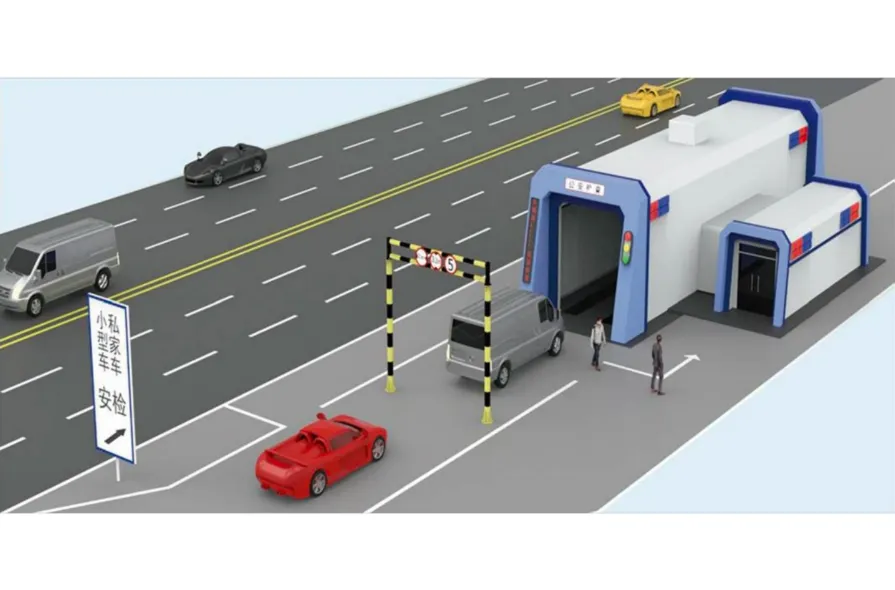

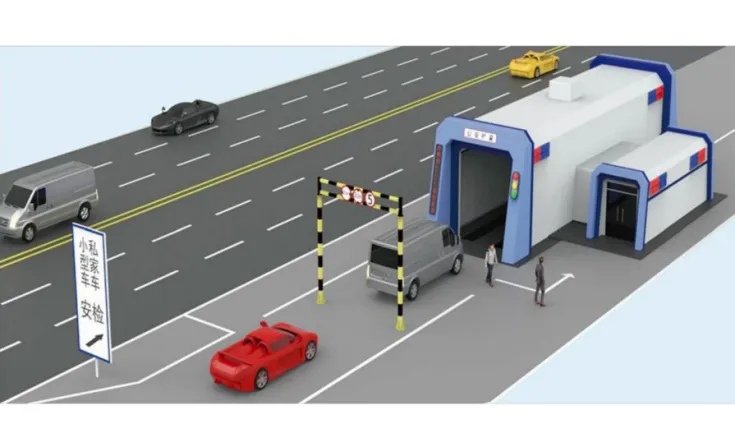

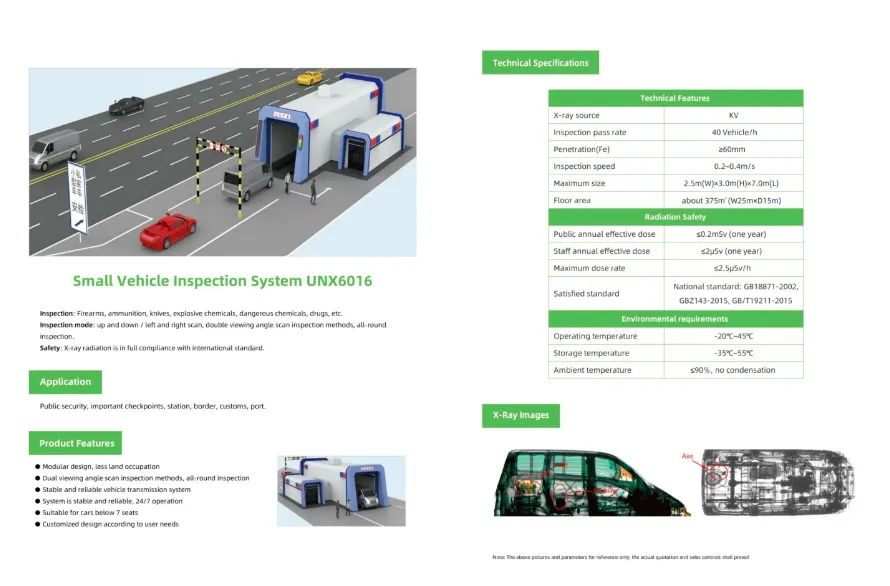

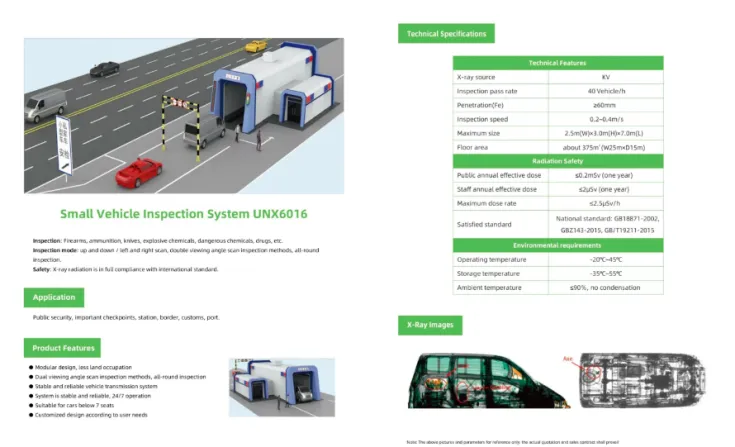

Small Vehicle Inspection System UNX6016

Product Features :

• Modular design, less land occupation
• Dual viewing angle scan inspection methods, all-round inspection
• Stable and reliable vehicle transmission system
• System is stable and reliable, 24/7 operation
• Suitable for cars below 7 seats
• Customized design according to user needs

Technical Specifications :

Technical Features
• X-ray source : KV
• Inspection pass rate : 40 Vehicle/h
• Penetration(Fe) : ≥60mm
• Inspection speed : 0.2~0.4m/s
• Maximum size : 2.5m(W)×3.0m(H)×7.0m(L)
• Floor area : about 375m² (W25m×D15m)

Radiation Safety
• Public annual effective dose : ≤0.2mSv (one year)
• Staff annual effective dose : ≤2μSv (one year)
• Maximum dose rate : ≤2.5μSv/h
• Satisfied standard : National standard: GB18871-2002, GBZ143-2015, GB/T19211-2015

Environmental requirements
• Operating temperature : -20℃~45℃
• Storage temperature : -35℃~55℃
• Ambient temperature : ≤90％, no condensation
