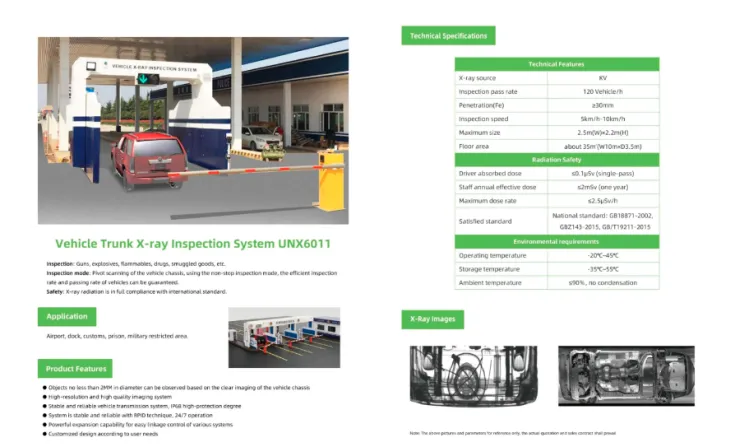

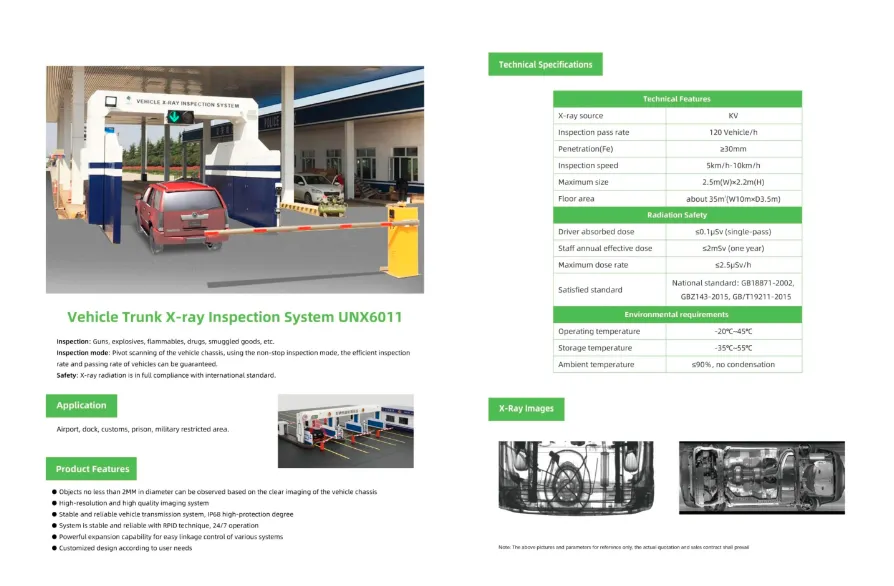

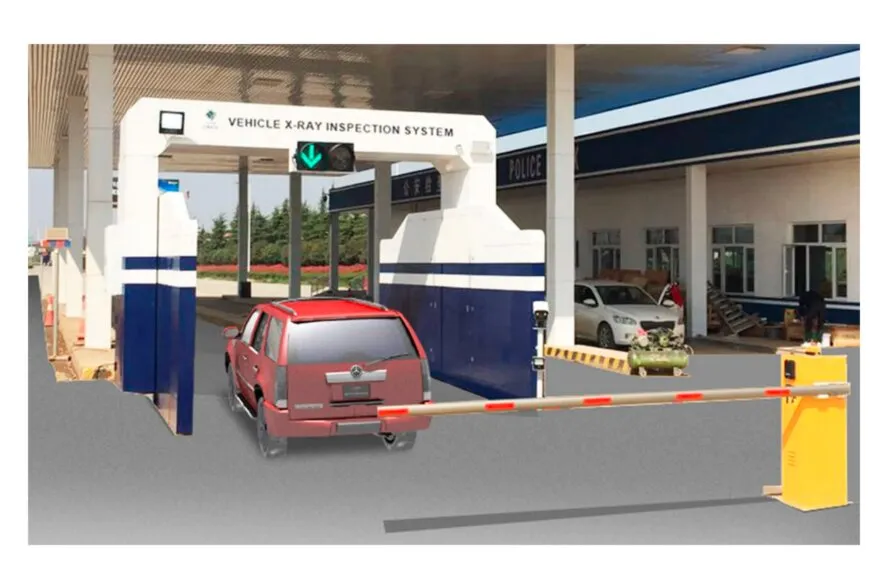

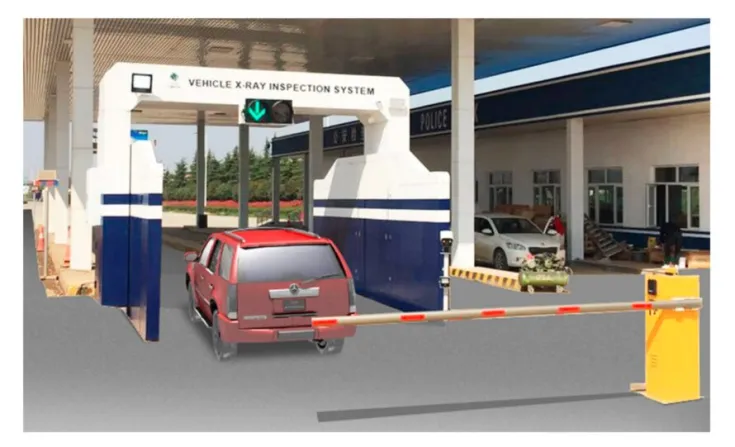

Vehicle Trunk X-ray Inspection System UNX6011
Product Features :
• Objects no less than 2MM in diameter can be observed based on the clear imaging of the vehicle chassis• High-resolution and high quality imaging system
• Stable and reliable vehicle transmission system, IP68 high-protection degree
• System is stable and reliable with RPID technique, 24/7 operation
• Powerful expansion capability for easy linkage control of various systems
Technical Specifications :
Technical Features• X-ray source : KV
• Inspection pass rate : 120 Vehicle/h
• Penetration(Fe) : ≥30mm
• Inspection speed : 5km/h-10km/h
• Maximum size : 2.5m(W)×2.2m(H)
• Floor area : about 35m²(W10m×D3.5m)
Radiation Safety
• Driver absorbed dose : ≤0.1μSv (single-pass)
• Staff annual effective dose : ≤2mSv (one year)
• Maximum dose rate : ≤2.5μSv/h
• Satisfied standard : National standard: GB18871-2002, GBZ143-2015, GB/T19211-2015
Environmental requirements
• Operating temperature : -20℃~45℃
• Storage temperature : -35℃~55℃
• Ambient temperature : ≤90％, no condensation
