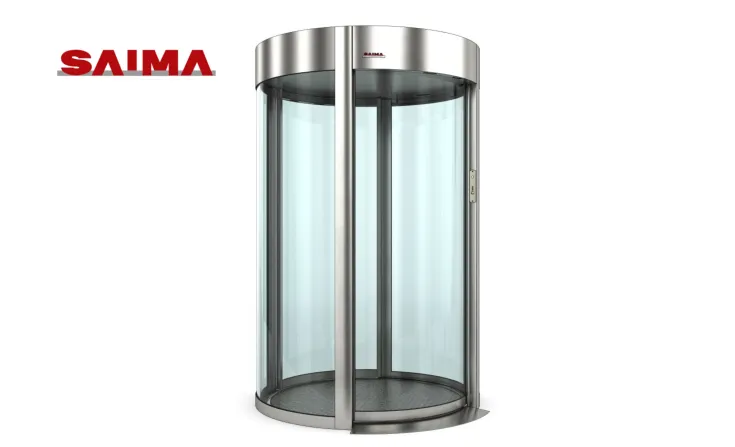

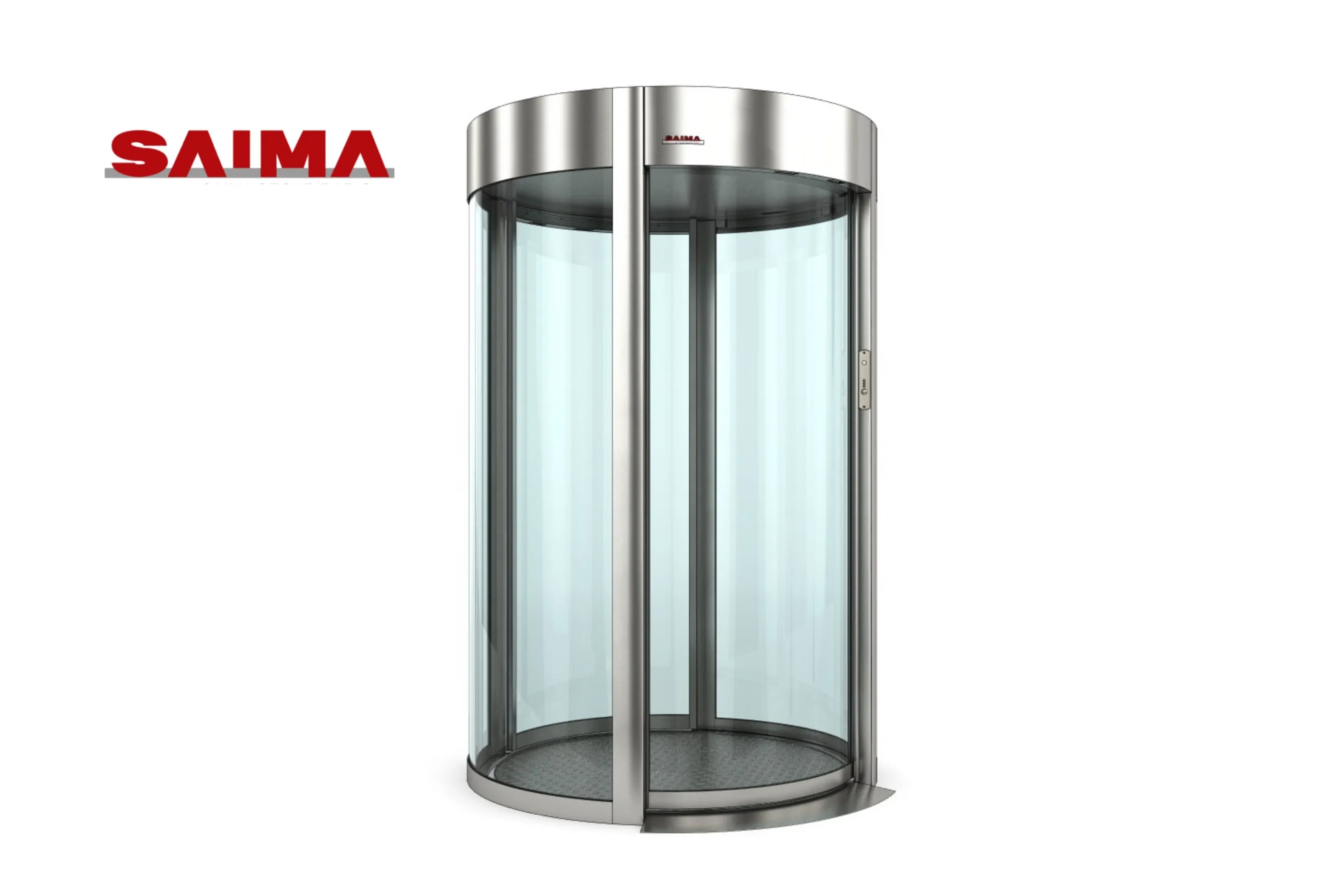

SAIMA Circlelock Commodor Light
Technical Features :
• Power Supply : 220V +/- 10%, 50Hz
• Maximum power absorb : 200W
• Working Temperature : - 10° C / 55° C
• Backup Battery : n. 2 sealed lead-acid batteries to allow the right for functioning in case of lack of power.
• Motors : n.2 24Vcc motor for reversible movement of the wings, with closing safety lock. Opening of both the doors in case of emergency.
• Operating logic : programmable with microprocessor with n.3 lines RS232, n.2 RS485.
• Accident prevention : photocell on vertical rod of the doors both of entrance and exit and control system which guarantees the regulation of the motors.
• Transit speed :
- 6 passages per minute in one direction
- 8/9 passages per minute in both directions
(such data do not consider the possible working times due to utilization of card/badge readers).
• Dimensions :
- Total dimensions (mm) : Height 2350, Diameter 1500
- Passage dimensions (mm) : Height 2074, Width 900, Weight 1000 Kg
• MCBF : 2 yrs. or 1 000 000 passages if the ordinary maintenance is properly applied.
• MTTR : 1 h
